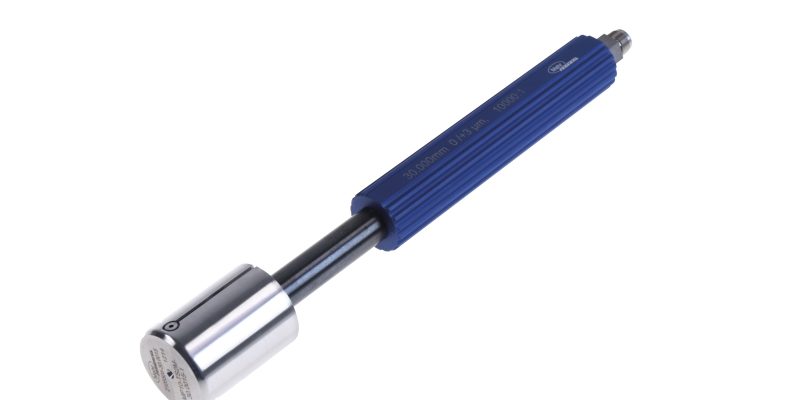

Millimar 2-Jet Through or Blind Hole Air Plugs

Calibrated ID tooling for the Dimensionair® Air Gaging Systems
Tooling is interchangeable without adjusting system magnification.
Federal Air Plugs have large clearance (see table below), allowing easy entrance into the hole being measured and a greater measuring range.
Long life – wide clearance and hard chrome (optional) body extends life of the air plug.
Deep, recessed jets – Air jets are recessed into the plug body, protecting them from damage.
Large jet size eliminates clogging from dirt and oils.
Order information: Please always state when ordering: Transmission ratio of the display unit (e.g. 2500:1), the nominal size to be measured and the specified workpiece tolerance

Technical data

Order no.	Nominal size mm	Product type	Nominal value of	Nominal Diameter up to	Magnification	Measuring span µm	Compatibility	Clearance
2092961	3.937 – 4.696	DP50	3.937 mm	4.696 mm	2500:1	38 µm	Federal	0.027 mm
2092962	4.699 – 6.312	DP50	4.699 mm	6.312 mm	2500:1	51 µm	Federal	0.03 mm
2092963	6.314 – 9.484	DP50	6.314 mm	9.484 mm	2500:1	76 µm	Federal	0.045 mm
2092964	9.487 – 11.859	DP50	9.487 mm	11.859 mm	2500:1	76 µm	Federal	0.045 mm
2092965	11.862 – 14.933	DP50	11.862 mm	14.933 mm	2500:1	76 µm	Federal	0.045 mm
2092966	14.935 – 20.978	DP50	14.935 mm	20.978001 mm	2500:1	76 µm	Federal	0.045 mm
2092967	20.980 – 28.699	DP50	20.98 mm	28.698999 mm	2500:1	76 µm	Federal	0.045 mm
2092968	28.702 – 37.691	DP50	28.702 mm	37.691002 mm	2500:1	76 µm	Federal	0.045 mm
2092969	37.694 – 44.193	DP50	37.694 mm	44.193001 mm	2500:1	76 µm	Federal	0.045 mm
2092970	44.196 – 63.751	DP50	44.195999 mm	63.750999 mm	2500:1	76 µm	Federal	0.045 mm
2092971	63.754 – 76.299	DP50	63.754002 mm	76.299004 mm	2500:1	76 µm	Federal	0.045 mm
2092972	76.302 – 89.151	DP50	76.302002 mm	89.151001 mm	2500:1	76 µm	Federal	0.071 mm
2092973	89.154 – 101.851	DP50	89.153999 mm	101.850998 mm	2500:1	76 µm	Federal	0.071 mm
2092974	101.854 – 114.300	DP50	101.853996 mm	114.300003 mm	2500:1	76 µm	Federal	0.071 mm
2092991	3.937 – 4.696	DP20	3.937 mm	4.696 mm	5000:1	19 µm	Federal	0.013 mm
2092992	4.699 – 6.312	DP20	4.699 mm	6.312 mm	5000:1	25 µm	Federal	0.015 mm
2092993	6.314 – 9.484	DP20	6.314 mm	9.484 mm	5000:1	38 µm	Federal	0.023 mm
2092994	9.487 – 11.859	DP20	9.487 mm	11.859 mm	5000:1	38 µm	Federal	0.023 mm
2092995	11.862 – 14.933	DP20	11.862 mm	14.933 mm	5000:1	38 µm	Federal	0.023 mm
2092996	14.935 – 20.978	DP20	14.935 mm	20.978001 mm	5000:1	38 µm	Federal	0.023 mm
2092997	20.980 – 28.699	DP20	20.98 mm	28.698999 mm	5000:1	38 µm	Federal	0.023 mm
2092998	28.702 – 37.691	DP20	28.702 mm	37.691002 mm	5000:1	38 µm	Federal	0.023 mm
2092999	37.694 – 44.193	DP20	37.694 mm	44.193001 mm	5000:1	38 µm	Federal	0.023 mm
2093000	44.196 – 63.751	DP20	44.195999 mm	63.750999 mm	5000:1	38 µm	Federal	0.023 mm
2093001	63.754 – 76.299	DP20	63.754002 mm	76.299004 mm	5000:1	38 µm	Federal	0.023 mm
2093002	76.302 – 89.151	DP20	76.302002 mm	89.151001 mm	5000:1	38 µm	Federal	0.071 mm
2093003	89.154 – 101.851	DP20	89.153999 mm	101.850998 mm	5000:1	38 µm	Federal	0.071 mm
2093004	101.854 – 114.300	DP20	101.853996 mm	114.300003 mm	5000:1	38 µm	Federal	0.071 mm
