Description
Fagor Automation

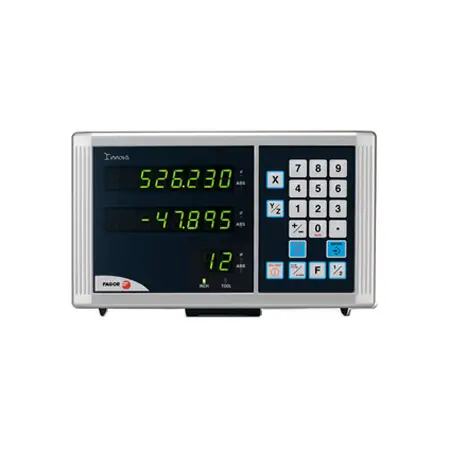

DRO Innova 20i
2-axis DRO for general purpose applications: Innova 20i
Applications: Scherr Tumico, Starrett, S-T Industries, J & L assorted Optical Comparators
- Preset function
- Absolute, Incremental and Io reference (home) signals
- Resolutions from 0.1 microns on
- Feed rate and movement alarms
- Axis coupling
- Hysteresis factor
- Linear axis sag compensation
- Calculator function
- Easy setup and diagnosis
- Energy saving mode
- Software limits
- Multi-point compensation
- PC communication through a USB adapter
- Display of maximum, minimum coordinates and the difference between them
- Connection to linear and angular axes
- CE and UL certified
O p e r a t i n g C o n d i t i o n s
Power supply protected against AC mains outage universal power supply
with an input range between 85 VAC and 264 VAC.
Frequency from 45 Hz to 400 Hz
Operating Temperature
from 5 ºC to 45 ºC (from 41ºF to 113 ºF)
Storage Temperature
from -25 ºC to 70 ºC (from -13 ºF to 158 ºF)
Relative Humidity
maximum 95% without condensation at 45 ºC (113 ºF)
Sealing
front panel IP54 and rear panel IP4X (DIN 40050)
Product in compliance with safety and electromagnetic compatibility regulations
EN-60204-1, EN-50081-2, EN 55011, EN-55022, EN-55082,EN- 610004-2, 3,4, 5,6,11. EN-V50140, EN-V50141,
ENV 50204 and EC directives 73/23/ECC, 89/392/CEE, 89/336/ECC and 73/23/ECC.
Type of feedback signals
TTL and differential TTL (EIA422).
Plus, 1 Vpp and SSI on the 40i models
Maximum feedback frequency
250 KHz
Which Digital Readout manufacturer has the best delivery, pricing, and warranty?
Fagor is the number two manufacturer of measuring systems and CNC controls in the world.
They offer a 5-year warranty, 3 year no fault.
You break it, we replace it.
Who has the best service policy?
Fagor has the best turnaround for in and out of warranty products usually within 24 hours.
