Manual floating type CMMs developed in quest for high-accuracy, low-cost and easy operation. The Crysta-Plus M is suitable to
measure a wide range of applications from a simple dimension to complex form. The scale systems on Mitutoyo high-precision models utilizes a high-performance linear encoder (manufactured by Mitutoyo), for detecting axis position. In addition, various
technologies have been utilized in the structure, part processing, and assembly to provide high accuracy measurement.

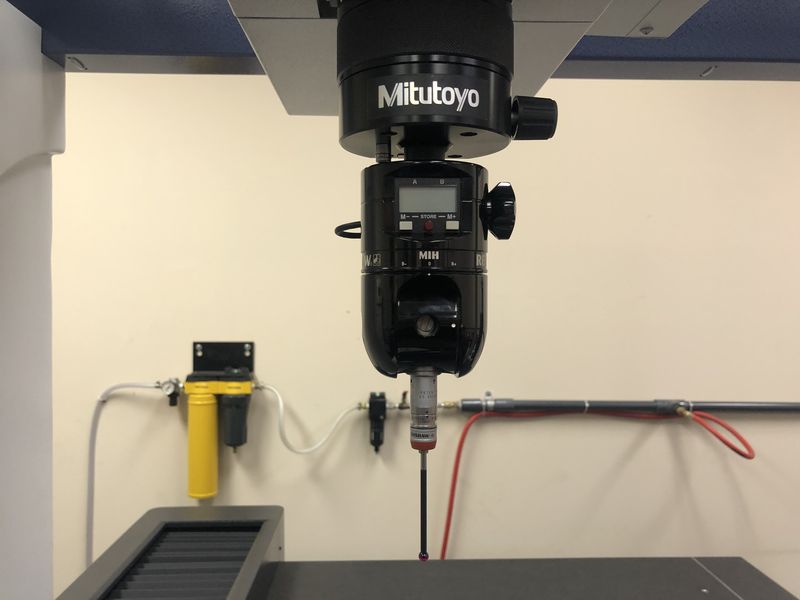

The Crysta-Plus M700 series has a large main unit, and is equipped with a mobile clamp so that onetouch clamping on each axis can be performed by hand. Continuous fine feed over the entire measuring range can be performed.


• Smooth operation utilizing high-precision air bearings and lightweight moving members.
• Continuous fine feed over the entire measuring range.
• One-touch air clamp for each axis.

Order No.           196-352

Model No:           M7106 Crysta-Plus

Bridge Type:      Standard, Manual

X-axis Range:     27.56in / 700mm

Y-axis Range:     39.37in / 1000mm

Z-axis Range:     23.62in / 600mm

Resolution:        .00002in / 0.0005mm

Work Table Material:   Black Granite

Work table Size:       34.43×68.50in / 900x1740mm

Tapped insert:           M8x1.25mm

Workpiece Height:   31.49in / 800mm

Workpiece load:       1763lbs / 800kg

Mass (stand included):   3968lbs / 1800kg

Dimension:               57.48×79.40×111.42in / 1460x2017x2840mm

Air Supply:   Pressure:   50.7 PSI (0.35MPa)

                Consumption:   1.76CFM (50L/min)

                            Source:    3.53CFM

MITUTOYO GOLD CARE PROMO included at NO ADDITIONAL CHARGE, please contact our Sales Representative.

     Mitutoyo America Warranty

          Gold Care Program
• A “Second Year” Extended Warranty
• Two-year “Bronze” Calibration Agreement
• Five-year Software Technical Phone Support
