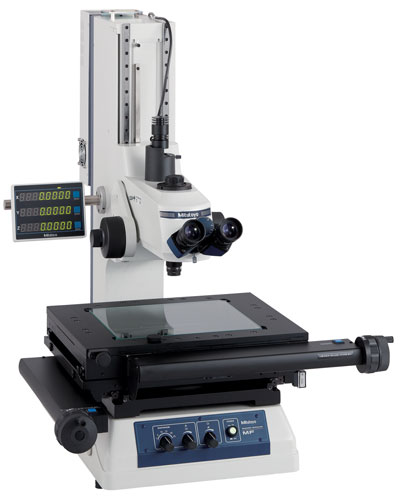

MF Series 176, Measuring Microscope

       Features
             Observation with a crisp and high-resolution erect image and a wide field of view.
    • Measuring accuracy that is the highest in its class (and conforms to JIS B 7153)
    • ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
    • Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
    • Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
    • Variety of standardized stages in sizes up to 400×200mm
    • Quick-release mechanism useful for moving the stage quickly when measuring work pieces that are large in size or quantity
    • Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
    • High-magnification eyepiece observation up to 2000×
    • Standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras

    Technical Data


    Optical tube

    • Monocular or Binocular (Must Choose)
     • 25º depression angle
         • 90º broken cross-hair reticle (12AAG836)
         • Erect image
         • TV Mount 50/50
         Observation Image • Erect Image
         Observation Type • Bright Field


         Eyepiece Lens
         • 10x (Included w/Tube)
         • 15x (Optional)
         • 20x (Optional)
         Objective
         • Magnification: 3X (Included)
         • W.D.: 2.85” (72.5mm); N.A.: 0.9
         • Optional: 1x, 5x, 10x, 20x, 50x, 100x


         Light Source
     • Halogen or LED     (Must Choose)
     • Adjustable Aperture Diaphragms
         • Light Intensity Infinitely Adjustable
         Transmitted Illumination • Telecentric Illumination
         Reflected Illumination • Koehler Illumination


     Display Unit
     Number of Axis • 2 axes (MF-A Type) or 3 axes (MF-B Type)
         Resolution • 0.0001” / 0.00005” / 0.00001”
         (0.001 mm / 0.0005 mm / 0.0001 mm)
         Functions •Data Output, Axis Linear Compensation,
         Metric or English Units, and more


         Stage
         • Precision Travel (2.2+0.02L)μm Accuracy
         • High Accuracy Linear Glass Scales
         • Quick Release Floating mode
         • Zero Set Button


     Power consumption:  70W LED, 120W Halogen, 120V AC, 50/60 Hz


         Mass
         • 1010D – 148 lbs. / 67 kg
         • 2010D – 157 lbs. / 71 kg
         • 2017D – 326 lbs. / 148 kg
         • 3017D – 344 lbs./ 156 kg
     • 4020D – 357 lbs. / 162 kg

    Optional Accessories

    176-392: Monocular tube with 10X eyepiece
    176-393: Binocular tube with 10X eyepiece set
    378-866: 10X eyepiece set (view field dia.: 24mm)
    378-857: 15X eyepiece set (view field dia.: 16mm)
    378-858: 20X eyepiece set (view field dia.: 12mm)
    375-043: Protractor eyepiece (10X)
    176-313: Digital protractor eyepiece (10X)
    375-036-2: 1X objective (W.D.: 61mm, N.A.: 0.03)
    375-037-1: 3X objective (W.D.: 77mm, N.A.: 0.09) (std. accessory)
    375-034-1: 5X objective (W.D.: 61mm, N.A.: 0.13)
    375-039: 10X objective (W.D.: 51mm, N.A.: 0.21)
    375-051: 20X objective (W.D.: 20mm, N.A.: 0.42)
    375-052: 50X objective (W.D.: 13mm, N.A.: 0.55)
    375-053: 100X objective (W.D.: 6mm, N.A.: 0.7)
    176-314-1: Slide type nosepiece (2-mount, par focal)
    176-314-2: Slide type nosepiece (2-mount, mag. adjusted)
    12AAA643: ND2 color filter (transmitted / surface)
    12AAA644: ND8 color filter (transmitted / surface)
    12AAA645: GIF filter (transmitted / surface) (std. accessory)
    12AAA646: LB80 color filter (transmitted / surface)
    375-054: 0.5X camera adapter (with C-mount adapter)
    970441: C-mount adapter
    513667: Halogen bulb (24V, 50W)
    12BAB345: Halogen bulb (long life type, 24V, 50W)
    176-308: Vibration damping stand
    176-309: Mounting stand
    375-056: Stage micrometer
    12AAA165: Lens cleaning kit
    12AAA846: Foot switch
    382951: Vinyl cover (standard accessory)
    llumination units
    176-367-2A: LED ring illuminator
    176-343A: Twin fiber-optics illuminator
    176-366A: Ring fiber-optics illuminator
    12AAG806: GIF color filter (for fiber-optics illuminator)
    12AAG807: LB80 color filter (for fiber-optics illuminator) Fixture and Stage accessories
    176-107: Holder with clamp*
    172-378: V-block with clamp* (max. work piece dia.: 1” / 25mm)
    172-197: Swivel center support* (max. work piece dia.: 3.1” / 80mm)
    176-305: Rotary stage with fine feed knob for 1010D/2010D models
    176-306: Rotary stage with fine feed knob for 2017D/3017D/4020D models

    *Fixture mount adapter (176-310) is required for 2010D models.
     Fixture mount adapter (176-304) is required for 2017D/3017D/4020D models.
