Description
Renishaw

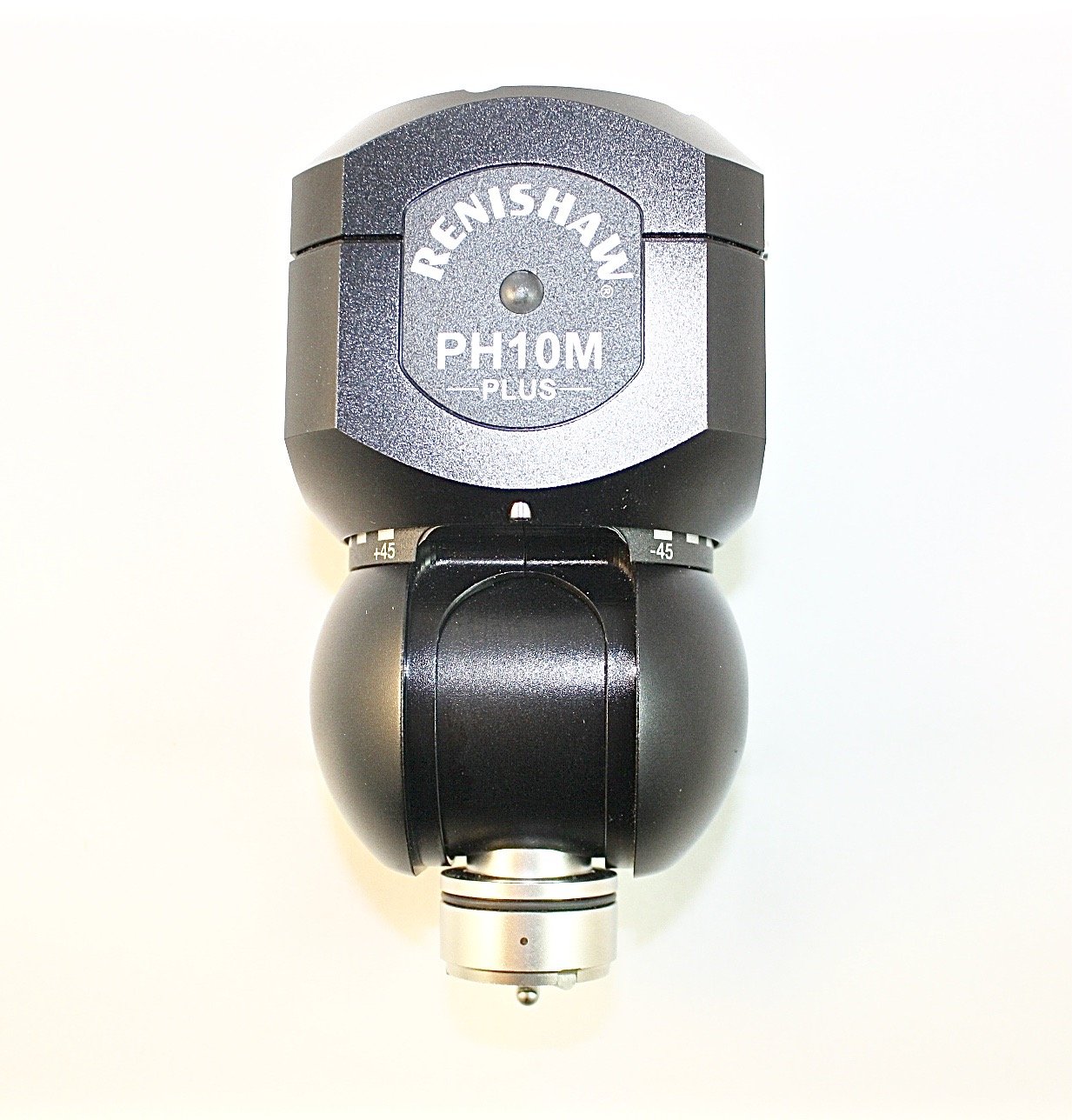

PH10M PLUS Shank-mounted, Motorised Indexing Probe Head
Pre-owned: An item that has been used previously.
The item may have some signs of cosmetic wear, but is fully

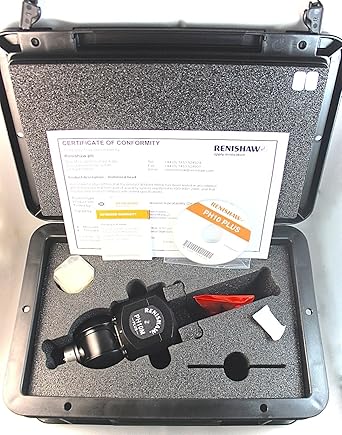

PH10M PLUS shank-mounted head with multiwired probe capability and a Renishaw autojoint
- The PH10M PLUS and PH10MQ PLUS are motorised indexing heads that re-orientate the probe repeatably
- to any one of 720 positions at 7.5° increments
- Autojoint mount for repeatable probe positioning
- Torque capable of lifting a 300 mm (11.81 in) long extension bar
- Full multiwire capability for probes such as TP7M and SP25M
- Rapid automatic probe interchange via ACR1 or ACR3
- AM1 for PH10M PLUS and AM2 for PH10MQ PLUS adjustment modules for aligning the probe head to machine
- PH10MQ PLUS fits inside the quill for a neater and shorter probe mount
- Suitable Controller – PHC10-3 PLUS
Specification
| Repeatability of position | <0.4 μm (0.00002 in) @ 100 mm from centre of A-axis rotation |
| Positioning | |
| Step | 7.5° |
| A-axis 0° to 105° | 15 positions |
| B-axis -180° to +180° | 48 positions |
| Total | 720 positions |
| Probe mounting | |
| PH10T PLUS | M8 thread, 18 mm diameter bush face |
| PH10M PLUS / PH10MQ PLUS | Multiwired autojoint |
| Dimensions from quill face | |
| XY (all) | 62 mm |
| Z (PH10T PLUS) | 102 mm |
| Z (PH10M PLUS) | 117 mm |
| Z (PH10MQ PLUS) | 73 mm |
| Weight | |
| PH10T PLUS | 595 g |
| PH10M PLUS | 620 g |
| PH10MQ PLUS | 730 g |
| System operating temperature | +10 °C to +40 °C (+50 °F to +104 °F) |
| System storage temperature | -10 °C to +70 °C (+14 °F to +158 °F) |
The PHC10-3 PLUS is powered from the ac mains supply via an IEC 320 connector.
The operating voltages of the unit are as follows:
100 Vac – 240 Vac +10%, -15% 47 Hz – 66 Hz, 30 W maximum
