Description
RENISHAW
SCR-200 CMM Probe Module Change Rack (TP200 Rack) A-1085-0002
Pre-owned: An item that has been used previously.
The item may have some signs of cosmetic wear, but is fully
The SCR200 racks provide automatic, high speed changing between up to six TP200 stylus modules and are powered by the separate probe interface PI 200-3, providing features to facilitate safe stylus changing.
The SCR200 rack is available in low force and standard force kits, where each kit comprises one SCR200 rack plus three stylus modules of the same force.

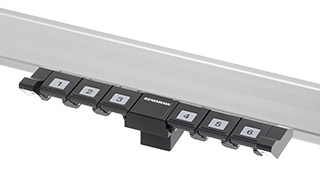

There are two options available to optimise installation for a variety of applications; the SCR200 leg-mounted rack and the new SCR200-R rail-mounted version.
Specification
| Weight | 0.75 kg |
| Mounting orientation | Vertical or horizontal |
| Mounting fixture | Single stud (M8, M10) |
| Number of ports | 6 |
| Repeatability of stylus change (2σ) at 50 mm | Automatic ≤1 μm
Manual ≤2 μm |
| Entry speed | Unrestricted |
| Module pull-off force | 800 g maximum |
| Overtravel protection | Electromechanical (5 minimum deflection) |
| LED indicators | |
| Power | Green |
| Status | Red (flashing during probe inhibit) |
| Change cycle detection | Optoelectronic beam system with Hall effect proximity sensor |
| Multi-rack usage | Up to two SCR200 units (12 ports) may be connected with a special cable |
